Impact Deconfliction
When a projectile detonates, VBS3Fires provides an analysis tool to compare
the position of the exploded round with the position of all OPFOR, BLUFOR and
Civilians in the area. This will present all units in a tabular form, specifying
their distances and directions to the explosion. This table can be filtered by
range.
To activate this window, from the toolbar:
Analysis->Impact Deconfliction.
Additionally, this analysis tool
provides a top down view of the impact area to easily see groups of units which
were close to the explosion. This view provides information about the location
of units, relative positioning of projectile detonations and the line of fire of
the guns.

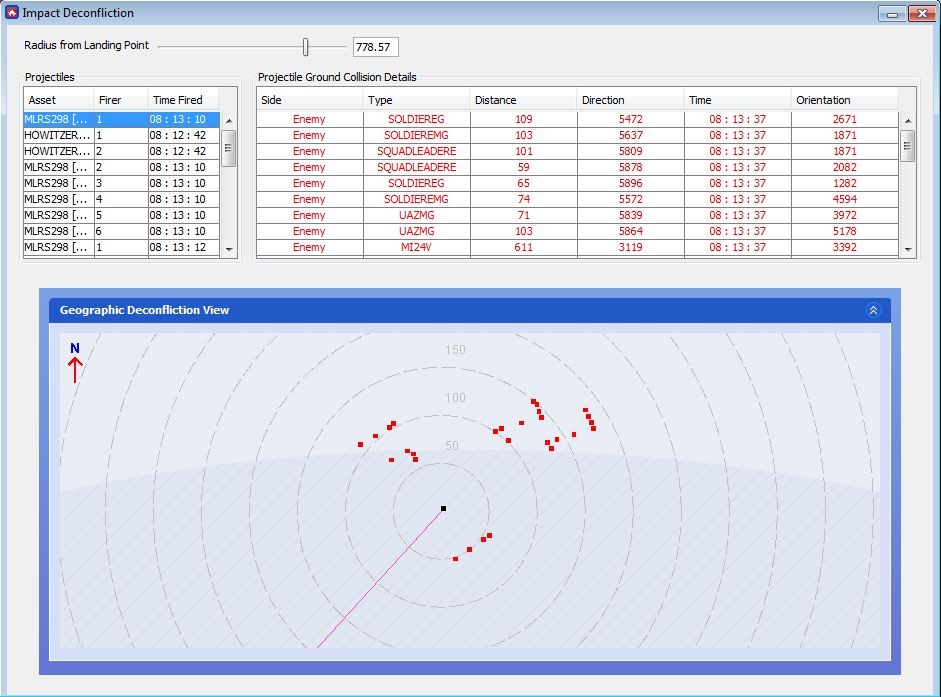

∆ Image 12i: Impact Deconfliction window |
