Transmitting Call-For-Fire commands from VBS3 to VBS3Fires

This feature provides an alternate method to create a Call-For-Fire mission. This requires the need to run both the VBS3Fires and VBS3. Once the scenario has started whereby the timers are running in VBS3Fires, then access [General Setting -> Doctrine tab] to set the Doctrine of your choice. Then switch to VBS3 Developer Console.

The following sample snippet contains input parameters that can be used to create a COF mission. During this scenario, the appropriate transmission will be displayed.

fusionFunction["VBS3FiresPlugin", "@20 TI R1 AF OVER"]

fusionFunction["VBS3FiresPlugin", "@20 TI R1 GR 03238240 OVER"] - This is a valid grid within the Porto terrain

fusionFunction["VBS3FiresPlugin", "@20 TI R1 SQD OVER"] – Once this command is executed you will notice that the round will impact.

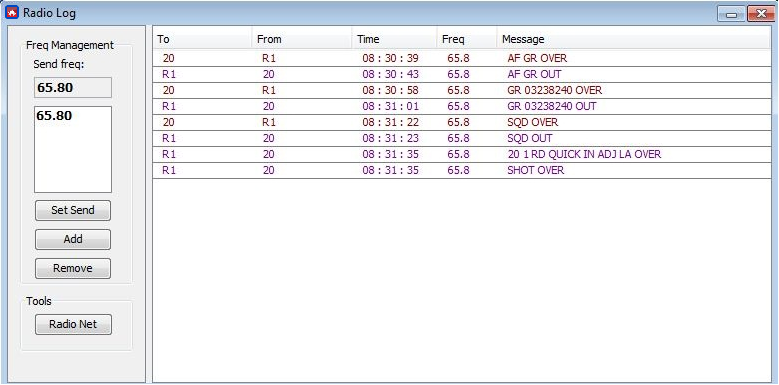

∆ Image 11f: Corresponding Radio Log
