Dwell and Rejoin
When firing from the Fire Scheduled Worksheet, the dwell would allow guns to dwell on a particular target until it has been rejoined. This will cause the guns to remain continuously firing on the current target until they rejoin the fire plan at the completion of the dwell. During the time of dwelling another additional serial will be created in the VBS3 Fires Instructor Control Panel to highlight the fire rounds which continuously fired. Once the rejoin button is clicked the serial will be shifted to the right in the timeline depending on the dwelled duration.

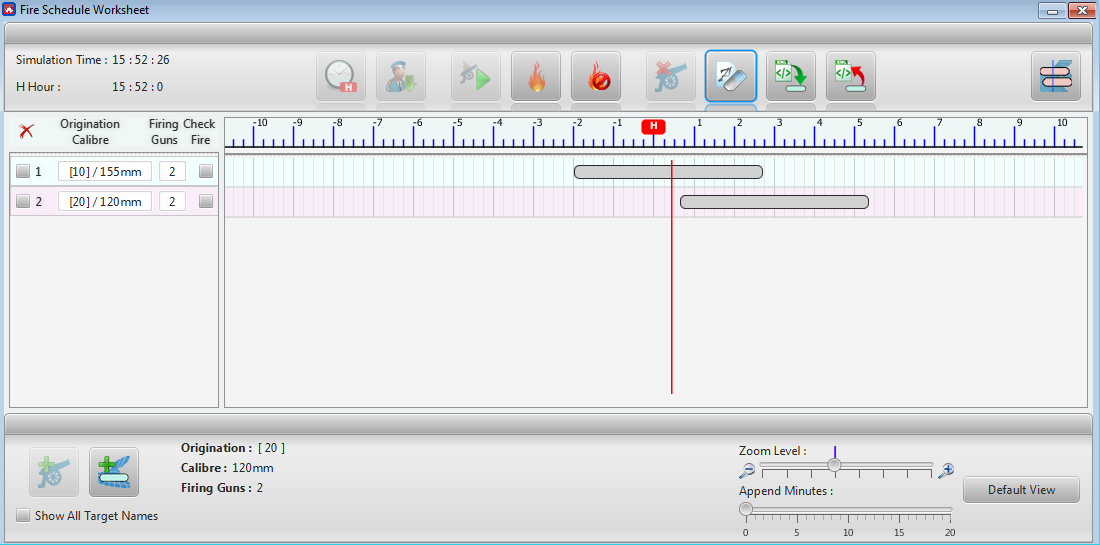

 ∆ Image 4m5: Fire Schedule Worksheet- Before Dwell |

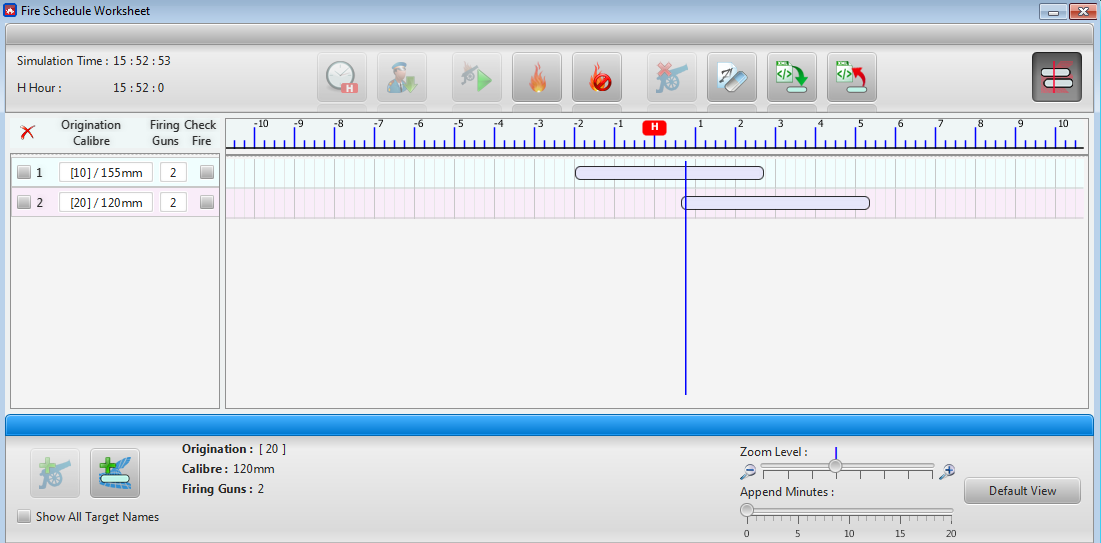

 ∆ Image 4m6: Fire Schedule Worksheet- at Dwell, ready to Rejoin |
Note:
When a serial is on Dwell, the ammunition fired during a Dwell will be the ammunition fired from the last round of the serial right before the Dwell takes place. This is only to be noted if a particular serial has rounds of followed by ammunitions.
Note:
In a multiple instructor scenario, if an instructor creates a fire serial in Schedule Worksheet, using a fire asset which is already locked by another instructor, the guns do not fire as they are being locked.
