Real Time edit
During a scheduled fire mission, it is possible to adjust the values for a fire serial. After activation, it is allowed to right click > Edit Serial and make changes to:
- Target
- Distribution
- Effects
- End Time
- Trajectory
- Fire Rate

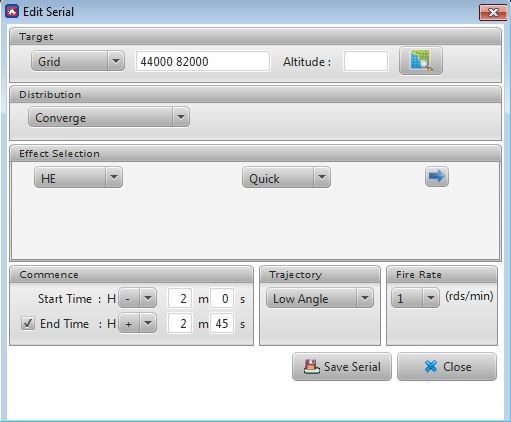

∆ Image 4m4: Fire Schedule Worksheet- Real Time edit of fire serial |
The Save button is disabled by default. After editing the fire serial, the Save button is enabled. After a serial has been edited in real time, the original serial is split into two serials; a new serial will be created with the new values in effect. This is to clearly identify previously fired serials before the edit has taken place and show the new serials with the new values after an edit that are to be fired. The serial would not split if only the end time is edited.
The serial would split according to the number of rounds calculated for the original serial. This means that if a serial has been edited without changing the rate of fire, the original serial and the new split serial’s number of rounds would accumulate to the original number of rounds. The new split serial would be created accordingly on the timeline.
∆ Image 4m4b: Serial before real time edit |
∆ Image 4m4c: Serial after real time edit |
Note :
Completed serials during a live mission cannot be edited until the whole mission is completed.
In real time the user can drag the end point of the serial to modify the end time of the serial. When dragging, the end time is indicated by a yellow tool tip. When dragging the serial, the increment will snap to the nearest 15 seconds.
∆ Image 4m4d: Dragging the End point of a serial |
The user may slide the start point of the serial, end point of the serial or the entire serial along the time line. It will slide to the nearest 15 second.
